Tag: Security Screens

Open post
MIES F Spiral Mesh

MIES F Spiral Mesh

MIES F Spiral Mesh

MIES F Spiral Mesh

Specification

Material Stainless Steel
Cross Rods 2 mm dia. Pitch 14 mm
Flat Spiral 2 x 1 mm Pitch 10 mm
Open Area 41% Weight 7 kg/m²

MIES F Spiral Mesh: printable specification sheet with 1:1 scale image

Material and Finishes

Available in Stainless Steel, Aluminium and Copper.

Finishes: Natural, Painted, Varnished, Anodised, Sandblasted, Brushed.

Maximum width for all specifications is 10 metres, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

MIES F Architectural mesh is a Codina Architectural product, supplied and distributed in the UK by Locker Architectural.

Open post
biscay-16-spiral-mesh-curtain

Biscay 16 Spiral Mesh Curtain

Biscay 16 Spiral Mesh Curtain

Biscay 16 Spiral Mesh Curtain

Specification

Coil Diameter 16 mm
Wire Diameter 3 mm
Weight 4.9 kg/m²
Max. Open Area 66%

Biscay 16 Spiral Mesh Curtain: printable specification sheet with 1:1 scale image

Availability

Aluminium. Painted finish.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in-house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Open post
biscay-13-spiral-mesh-curtain

Biscay 13 Spiral Mesh Curtain

Biscay 13 Spiral Mesh Curtain

Biscay 13 Spiral Mesh Curtain

Specification

Coil Diameter 13 mm
Wire Diameter 1.8 mm
Weight 2.1 kg/m²
Max. Open Area 74%

Biscay 13 Spiral Mesh Curtain: printable specification sheet with 1:1 scale image

Availability

Aluminium. Painted finish.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in-house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Open post
Coburg-36-18-19-16-spiral-wire mesh

Coburg 36-18-19-16 Spiral Mesh

Coburg 36-18-19-16 Spiral Mesh

Coburg 36-18-19-16 Spiral Mesh

Specification

Specification Reference Spiral Pitch Spiral Wire Cross Pitch Cross Wire Open Area Weight kg/m²
36-18-19-16 8.5 mm 1.2 mm 16 mm 1.6 mm 62% 4.1

Coburg 36-18-19-16 Spiral Mesh: printable specification sheet with 1:1 scale image

Availability

Only available in Stainless Steel.

Maximum width for all specifications is 6000 mm, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in-house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Coburg 36-18-19-16 Architectural mesh is a Codina Architectural product, supplied and distributed in the UK by Locker Architectural.

Open post
Coburg-30-14-24-14-spiral- wire mesh

Coburg 30-14-24-14 Spiral Mesh

Coburg 30-14-24-14 Spiral Mesh

Coburg 30-14-24-14 Spiral Mesh

Specification

Specification Reference Spiral Pitch Spiral Wire Cross Pitch Cross Wire Open Area Weight kg/m²
30-14-24-14 10 mm 2 mm 13 mm 2 mm 44% 11.6

Coburg 30-14-24-14 Spiral Mesh: printable specification sheet with 1:1 scale image

Availability

Only available in Stainless Steel.

Maximum width for all specifications is 6000 mm, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in-house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Coburg 30-14-24-14 Architectural mesh is a Codina Architectural product, supplied and distributed in the UK by Locker Architectural.

Open post
Paxton-Spiral-Wire Mesh

Paxton Spiral Mesh

Paxton Spiral Mesh

Paxton Spiral Mesh

Specification

Material Stainless Steel 316L
Cross Rods 2 mm Pitch 8 mm
Spiral 2.9 x 1.1 mm Pitch 21 mm
Open Area 24 % Weight 15.5 kg/m²

Paxton Spiral Mesh: printable specification sheet with 1:1 scale image

Availability

Only available in Stainless Steel.

Maximum width for all specifications is 6000mm, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in-house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Paxton Architectural mesh is a Codina Architectural product, supplied and distributed in the UK by Locker Architectural.

Projects using this mesh

Open post
Coburg-22-16-38-14-Spiral-Mesh

Coburg 22-16-38-14 Spiral Mesh

Coburg 22-16-38-14 Spiral Mesh

Coburg 22-16-38-14 Spiral Mesh

Specification

Specification Reference Spiral Pitch Spiral Wire Cross Pitch Cross Wire Open Area Weight kg/m²
22-16-38-14 8 mm 1.5 mm 14 mm 2 mm 53% 6.04

Coburg 22-16-38-14 Spiral Mesh: printable specification sheet with 1:1 scale image

Materials and Finishes

Available in Stainless Steel, Aluminium and Copper.

Finishes: Natural, Painted, Varnished, Anodised, Sandblasted, Brushed.

Maximum width for all specifications is 10 metres, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Coburg 22-16-38-14 Architectural mesh is a Codina Architectural product, supplied and distributed in the UK by Locker Architectural.

Projects using this mesh

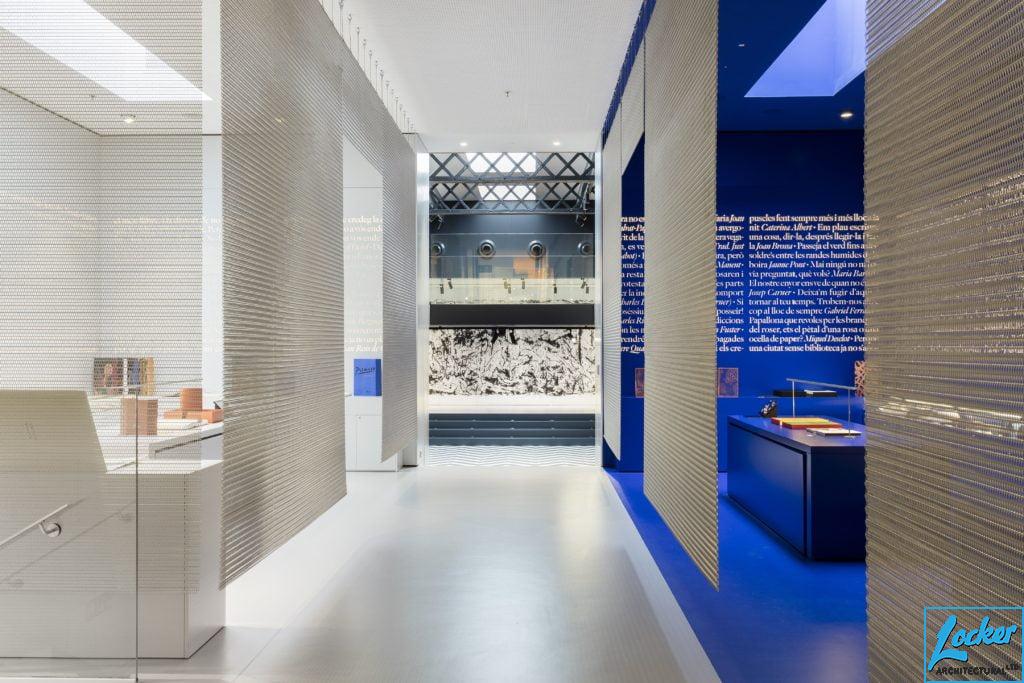

Ona Bookshop Barcelona Spain Hallway

Ona Bookshop

Ona Bookshop

By miwolrJune 11, 2021Coburg 22-16-38-14
Ona Bookshop The Ona bookshop is a cultural facility with a contemporary and unique design. In addition to comparing books in the Catalan language, you can attend workshops and lectures to better understand their cultural significance. The 800m2 space was designed by Mediapro Exhibitions and with the technical direction of Clar Gestión de Obras. To […]
Open post
Eiffel-14-Spiral- Wire Mesh

Eiffel 14 Spiral Mesh

Eiffel 14 Spiral Mesh

Eiffel 14 Spiral Mesh

Specification

Material Stainless Steel 316L
Cross Rods 4 mm Pitch 50 mm
Spiral 5 x 1 mm Pitch 14 mm
Open Area 33% Weight 8.95 kg/m²

Eiffel 14 Spiral Mesh: printable specification sheet with 1:1 scale image

Availability

Only available in Stainless Steel.

Maximum width for all specifications is 6000 mm, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in-house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Eiffel 14 Architectural mesh is a Codina Architectural product, supplied and distributed in the UK by Locker Architectural.

Open post
Coderch-Spiral-Wire Mesh

Coderch Spiral Mesh

Coderch Spiral Mesh

Coderch Spiral Mesh

Specification

Material Stainless Steel 316L
Cross Rods 3 mm Pitch 26 mm
Spiral 4 x 1.5 mm Pitch 34.3 mm
Open Area 55% Weight 6.2 kg/m²

Coderch Spiral Mesh: printable specification sheet with 1:1 scale image

Availability

Only available in Stainless Steel.

Maximum width for all specifications is 6000 mm, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in-house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Coderch Architectural mesh is a Codina Architectural product, supplied and distributed in the UK by Locker Architectural.

Open post
Eiffel-40-Spiral- Wire Mesh

Eiffel 40 Spiral Mesh

Eiffel 40 Spiral Mesh

Eiffel 40 Spiral Mesh

Specification

Material Stainless Steel 316L
Cross Rods 5 mm Pitch 99.5 mm
Spiral 7 x 1 mm Pitch 40 mm
Open Area 58% Weight 4.8 kg/m²

Eiffel 40 Spiral Mesh: printable specification sheet with 1:1 scale image

Availability

Only available in Stainless Steel.

Maximum width for all specifications is 6000 mm, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in-house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Eiffel 40 Architectural mesh is a Codina Architectural product, supplied and distributed in the UK by Locker Architectural.
