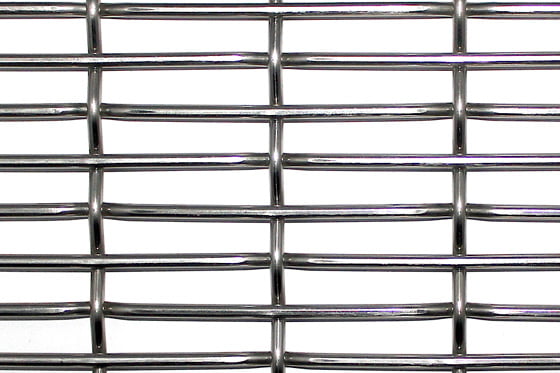

Brocklebank 50/10 Pre-crimped Wire Mesh

Brocklebank 50/10 Pre-crimped Wire Mesh


APERTURE50 x 10 mmWIRE4 mm
OPEN AREA66%WEIGHT 9.3 kg/m²

Brocklebank 50/10 Pre-Crimped Wire Mesh: printable specification sheet with 1:1 scale image.


The Brocklebank ‘Flat Top’ type is available in a range of apertures from 75mm > 1.5mm and wire diameters from Ø5mm >Ø1.2mm.

Generally available in grades 316 and 304 stainless. Can also be made to order in Galvanised Steel, Aluminium, Brass and Phosphor Bronze.

Typical Applications

Balustrades, façades, brise soleil and security panels.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015 and Achilles 'Building Confidence' Level 4.

With comprehensive in house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.
