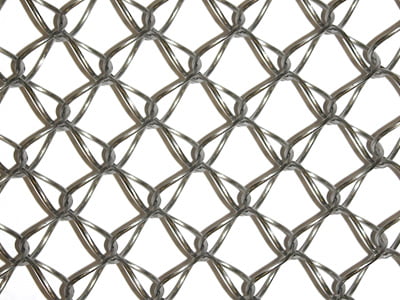

Iguassu Spiral Mesh Curtain

Iguassu Spiral Mesh Curtain


MaterialStainless Steel
Wire Diameter1.6 mmFinishBright Drawn
Coil Diameter18 mmPitch30 mm
Open Area85%Weight5 kg/m²

Iguassu Spiral Mesh Curtain: printable specification sheet with 1:1 scale image

The nature of this mesh gives it a ‘3 dimensional aspect’ with an overall thickness of 18 mm. Other combinations of coil diameter and pitch are available.


Also available in anodised aluminium and painted steel.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015 and Achilles 'Building Confidence' Level 4.

With comprehensive in house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.
