Coburg 36-18-19-16 Spiral Mesh


Coburg 36-18-19-16 Spiral Mesh

Specification

Specification ReferenceSpiral PitchSpiral WireCross PitchCross WireOpen AreaWeight kg/m²
36-18-19-168.5 mm1.2 mm16 mm1.6 mm62%4.1

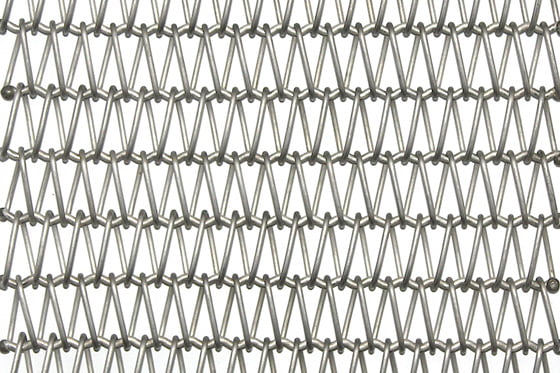

Coburg 36-18-19-16 Spiral Mesh: printable specification sheet with 1:1 scale image

Availability

Only available in Stainless Steel.

Maximum width for all specifications is 6000 mm, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.
