Coburg 30-14-24-14 Spiral Mesh


Coburg 30-14-24-14 Spiral Mesh

Specification

Specification Reference Spiral Pitch Spiral Wire Cross Pitch Cross Wire Open Area Weight kg/m²
30-14-24-14 10 mm 2 mm 13 mm 2 mm 44% 11.6

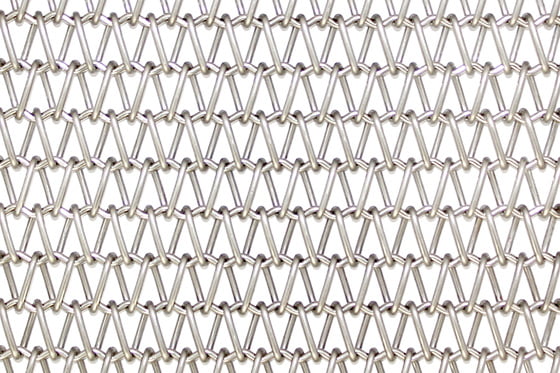

Coburg 30-14-24-14 Spiral Mesh: printable specification sheet with 1:1 scale image

Availability

Only available in Stainless Steel.

Maximum width for all specifications is 6000 mm, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015.

With comprehensive in-house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Coburg 30-14-24-14 Architectural mesh is a Codina Architectural product, supplied and distributed in the UK by Locker Architectural.
