Rope Diamond Ferruled Mesh


Rope Diamond Ferruled Mesh

Availability

Available in Stainless Steel 316.

Typical Applications

Bird screening, animal enclosures, protective netting, balustrading and tension façades.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015 and Achilles 'Building Confidence' Level 4.

With comprehensive in house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

Standard Specification Codes

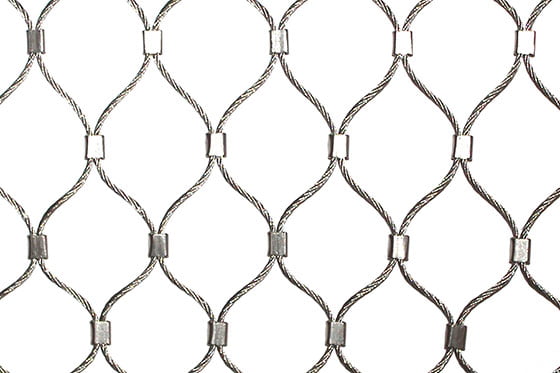

Rope Diamond Ferruled Mesh: printable specification sheet with 1:1 scale image

Opening (mm) OWxOHSpecification Codes/Weight per m2 by Cable Diameter (d)
1 mm1.5 mm2 mm3 mm4 mm
CodeWeightCodeWeightCodeWeightCodeWeightCodeWeight
25 x 4301250.64kg15251.59kg
30 x 5210300.53kg15301.30kg
35 x 6110350.42kg15351.01kg20351.74kg
40 x 6910400.36kg15400.88kg20401.51kg
50 x 9010500.27kg15500.65kg20501.12kg30502.82kg40505.09kg
60 x 10410600.22kg15600.52kg20600.90kg30602.24kg40604.04kg
70 x 12110700.18kg15700.42kg20700.73kg30701.80kg40703.25kg
80 x 13910800.15kg15800.36kg20800.62kg30801.51kg40802.72kg
100 x 173101000.12kg151000.28kg201000.49kg301001.19kg401002.14kg
120 x 242101200.10kg151200.23kg201200.41kg301200.97kg401201.74kg
160 x 277101600.07kg151600.17kg201600.30kg301600.70kg401601.26kg
180 x 312101800.06kg151800.15kg201800.26kg301800.60kg401801.08kg
200 x 346102000.05kg152000.12kg202000.22kg302000.52kg402000.92kg

For measuring purposes the ferruled mesh is assumed to be stretched to create a 60° angle at the top and bottom of the diamond.

OW = Opening Width
OH = Opening Height
d = Cable Diameter
θ = 60° Angle







Edging Options

Rope diamond ferruled mesh is delivered as standard with spare ferrules, lashing wire and a specialist fixing tool.  It can optionally be edged to order, ready for immediate installation:

Loose Ferrules

Loose edging ferrules enable easy attachment of the mesh to a frame.

Eyelets

The ferruled mesh can be edged with a combination of loose ferrules and eyelets for fixing to a solid surface.

Orientation Options

Horizontal

Vertical

Rope Diamond ferruled wire mesh can be installed horizontally or vertically depending on the results required.

Its flexibility means it can be stretched, bunched and twisted to fit the underlying structure and create interesting effects, without compromising either strength or security.
