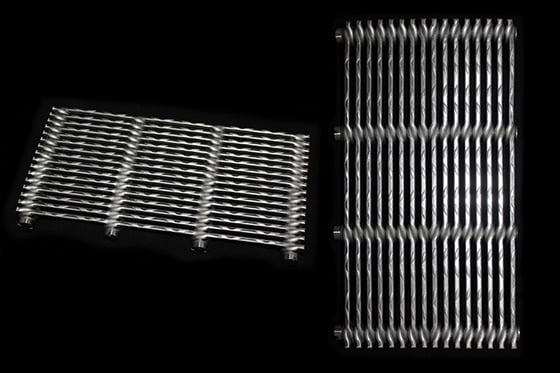

Riffle Top Looped Architectural Wedge Wire


Riffle Top Looped Architectural Wedge Wire

Specification

Wedge Wire Material316, 316L and 304 Stainless Steel
Width (w)3.0 mm
Height (h)19 mm
Angle (a)12°
Aperture3.28 mm
Support Rod*7.7 mm
FramingAs required subject to application

*Please note: The information provided is indicative. Expert advice should always be sought in specifying the correct product for your application.

Riffle Top Looped Architectural Wedge Wire: printable specification sheet with 1:1 scale image

Wedge Wire Cross Section

Typical Applications

Balustrade infill panels, air distribution and drainage grilles, floor grilles, fountain grilles, ceiling grilles and bespoke applications.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015 and Achilles 'Building Confidence' Level 4.

With comprehensive in house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.
