Nevis No Limits Architectural Expanded Metal


Nevis No Limits Architectural Expanded Metal

Sample: Natural Finish

Expanded Metals Diagram

MARIANItech expanded metal

Nevis No Limits Expanded Metal: printable specification sheet with 1:1 scale image.

Availability

Aluminium natural, painted, powder coated or anodised. Interior and exterior grades of stainless steel.

Typical Applications

Façades and cladding with no limits on scale. Perfect for large areas where a high percentage of open area is important.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015 and Achilles 'Building Confidence' Level 4.

With comprehensive in house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.

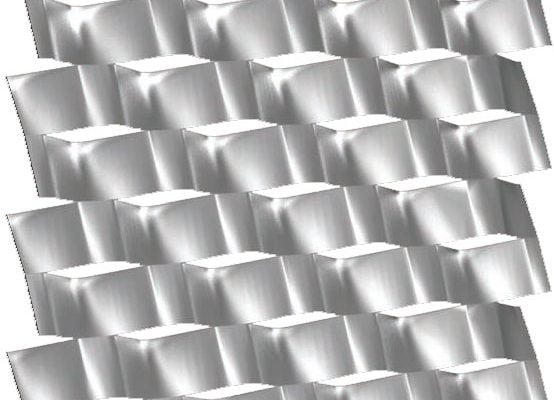

Nevis No Limits Heavy

Specifications

LWDSWDTHKSTROPEN AREAWEIGHT (ALUMINIUM)
500 mm70 mm2 mm20 mm46%5.4 kg/m²
500 mm70 mm3 mm20 mm46%8.1 kg/m²

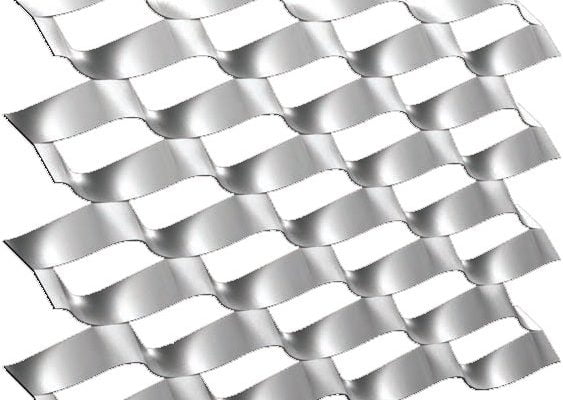

Nevis No Limits Light

Specifications

LWDSWDTHKSTROPEN AREAWEIGHT (ALUMINIUM)
500 mm70 mm2 mm20 mm46%5.4 kg/m²
500 mm70 mm3 mm20 mm46%8.1 kg/m²
